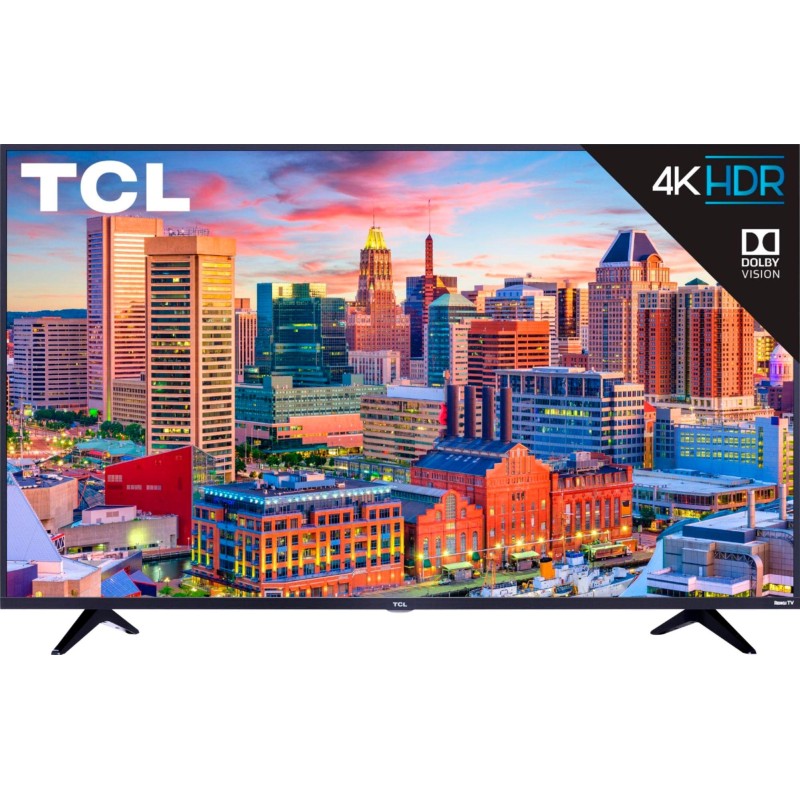

TCL 55S515

TCL 55S515

Operating System
Operating System
Roku TV
Screen
Screen
1388 mm, 54.6457 in
Weight
Weight
14.5 kg, 31.97 lbs
Pixel Density
Pixel Density
80 ppi
Resolution
Resolution
3840 x 2160 pixels

TCL 55S515 Prices

Amazon

1-3 Day(s)

★★★★☆ 4.7/5
Go to Store
eBay

3-7 Day(s)

★★★★☆ 4.5/5
Go to Store

TCL 55S515 Key Specifications

Brand
TCL
Model
TCL 55S515
Version
55S515
Alias
S5
Category
Displays
Released Date
2018
Operating System
Roku TV
Screen
1388 mm, 54.6457 in
Pixel Density
80 ppi
Resolution
3840 x 2160 pixels
Weight
14.5 kg, 31.97 lbs

TCL 55S515 Technical Specifications

Product Overview

Brand
TCL
Alias
55S517
Model
TCL 55S515
Category
Displays
Version
55S515
Series
S5

Design

ERGONOMICS

Features
  • VESA Mount
  • Detachable Stand
Additional features
Stand width - 947 mm
Vesa mount size
200 x 200 mm

BODY

Height (shorter side)
  • 711 mm
  • 27.9921 in
Width (longer side)
  • 1227 mm
  • 48.3071 in
Thickness
  • 3 in
  • 76.2 mm
Weight
  • 14.5 kg
  • 31.97 lbs
Height with stand (shorter side)
  • 762 mm
  • 30 in
Width with stand (longer side)
  • 1227 mm
  • 48.3071 in
Thickness with stand
  • 269.2 mm
  • 10.5984 in
Weight with stand
  • 15 kg
  • 33.07 lbs
Colors
Black

REGULATORY COMPLIANCE

Compliance
RoHS

ACCESSORIES

Accessories
  • Remote control - RC280 (55S515)
  • Remote control - RC580 (55S517)

STORAGE ENVIRONMENT

Temperature range
  • -15 °C - 45 °C
  • 5 °F - 113 °F

Display

Average response time
16 ms
Peak brightness
300 cd/m²
Resolution (h x w)
3840 x 2160 pixels
Screen area
94.34 %
Vertical viewing angle
178 °
Type
VA
Color depth
10 bits (8 bits + FRC)
Backlight
Edge LED
Size
54.6 in
Resolution
  • Ultra HD (UHD)
  • 4K
  • 2160p
Static contrast ratio
6000 : 1
Horizontal viewing angle
178 °
Minimum response time
7 ms
Pixel density
80 ppi
Brightness
250 cd/m²
Refresh rate (digital)
  • 50 Hz
  • 60 Hz
Pixel pitch
  • 0.315 mm
  • 0.0124 in
Aspect ratio
  • 1.778:1
  • 16:9
Height
  • 680.4 mm
  • 26.7874 in
Hdr (high dynamic range)
  • Dolby Vision
  • HDR10
Diagonal
  • 1388 mm
  • 54.6457 in
Width
  • 1209.6 mm
  • 47.622 in
Number of colors
  • 1073741824 colors
  • 30 bits
Additional features
Frame rate control

Internal Components

CPU

Number of cores
2

GPU

Number of cores
2

POWER

Maximum power usage
125 W
Average power usage
100 W
Power usage in eco mode
50 W
Voltage
100 V - 120 V
Frequency
50 Hz - 60 Hz

SOFTWARE

Operating systems supported
Roku TV
Image file formats supported
  • JPEG
  • GIF
  • PNG
  • BMP
Video file formats supported
  • AVI (Audio Video Interleaved, .avi)
  • DivX (.avi, .divx, .mkv)
  • H.263
  • H.264
  • MPEG-4 Part 10
  • AVC video
  • MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
  • MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
  • MPEG-4
  • TS (MPEG Transport Stream, .ts, .tsv, .tsa)
  • WMV (Windows Media Video, .wmv)
Additional features
  • HDR Dynamic Contrast
  • HDR Pro Gamma
  • Wide Color Gamut
  • iPQ Engine

TV TUNER

Technologies supported
  • Analog (NTSC/PAL/SECAM)
  • Clear QAM
  • ATSC

AUDIO

Built-in speakers
2 x 8 W
Supported file formats
  • AAC (Advanced Audio Coding)
  • AC3
  • AC-3
  • FLAC (Free Lossless Audio Codec, .flac)
  • MP3 (MPEG-2 Audio Layer II, .mp3)
  • WMA (Windows Media Audio, .wma)
  • WAV (Waveform Audio File Format, .wav, .wave)
Additional features
  • Dolby Atmos
  • Dolby Digital
  • Dolby Digital Plus

WIRELESS

Technologies supported
  • LAN
  • Wi-Fi
  • 802.11a (IEEE 802.11a-1999)
  • 802.11b (IEEE 802.11b-1999)
  • 802.11g (IEEE 802.11g-2003)
  • 802.11n (IEEE 802.11n-2009)
  • 802.11n 5GHz
  • 802.11ac (IEEE 802.11ac)

Not available

Module
Front Camera
3D (Three-Dimensional) Display
3D Display
Left & right swivel
Left & Right Swivel
Landscape & portrait mode pivot
Pivot for Landscape & Portrait Mode
Forward & backward tilt
Forward & Backward Tilt
Adjustable height
Adjustable Height
