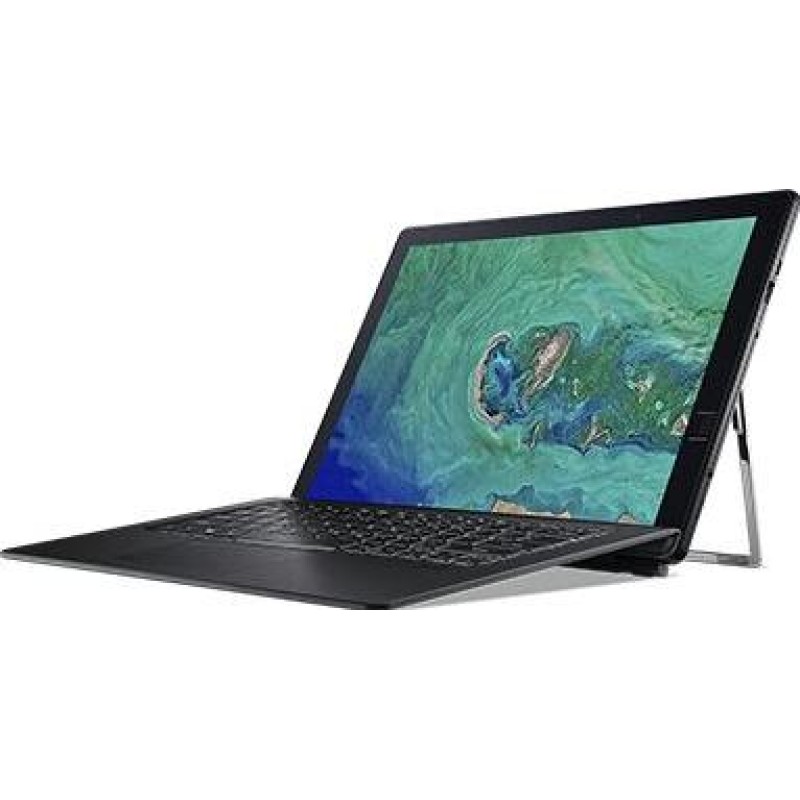

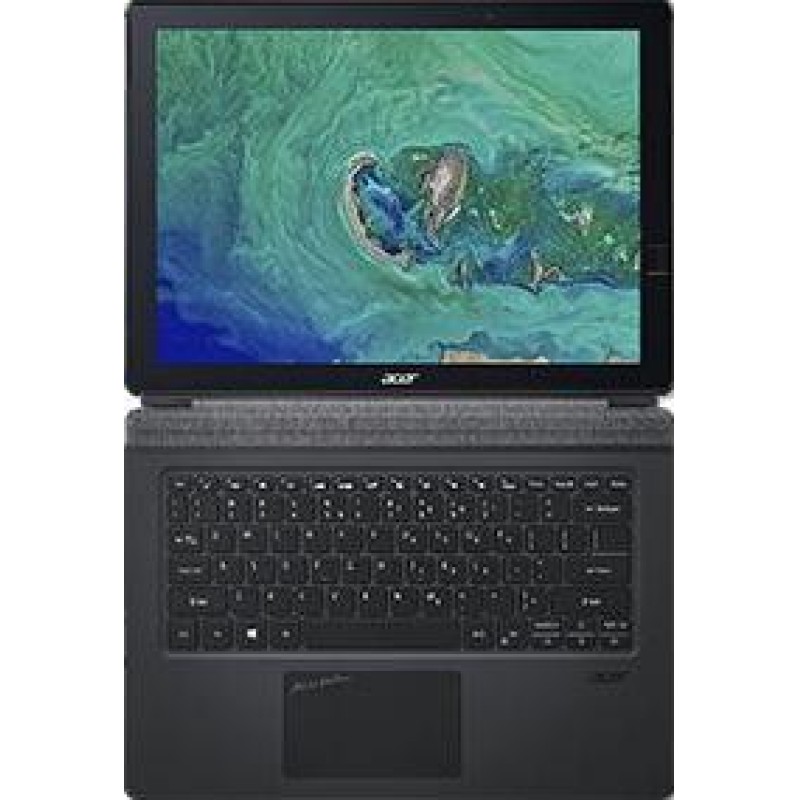

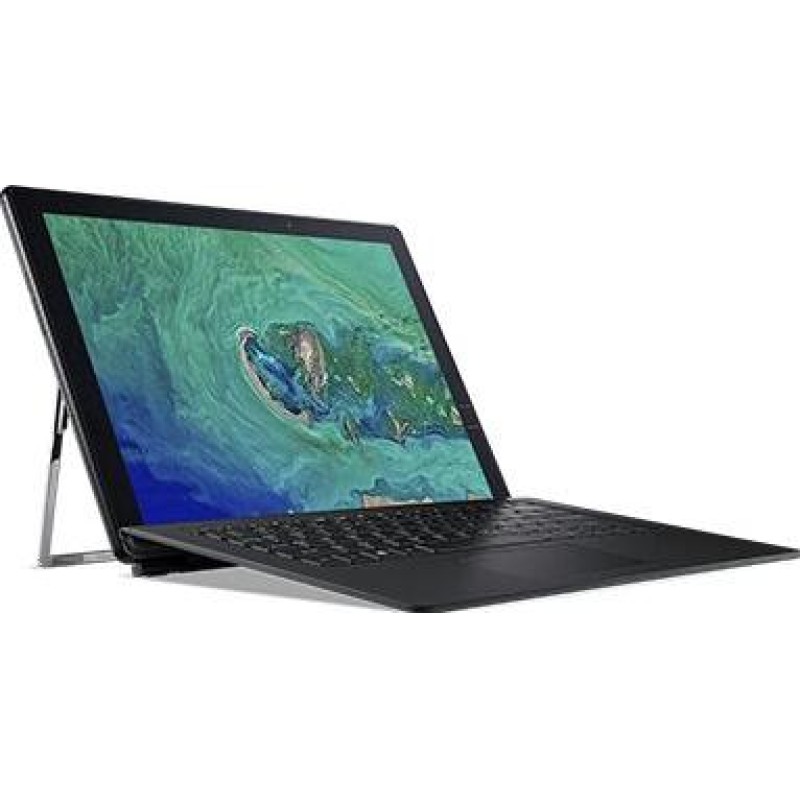

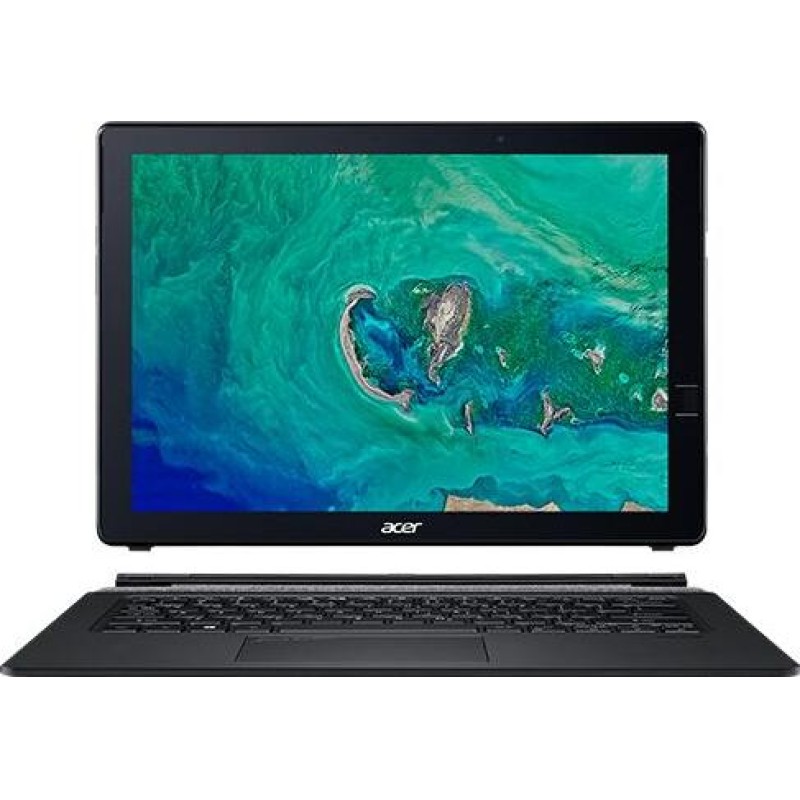

Acer Switch 7 Black Edition

Operating System
Operating System
Windows 10 Home
Screen
Screen
13.5 inch
CPU
CPU
i5-8250U
RAM
RAM
LPDDR3-SDRAM
Storage
Storage
256 GB
Battery
Battery
37 Wh

Acer Switch 7 Black Edition Prices


Acer Switch 7 Black Edition Key Specifications


Brand
Acer
Model
Acer Switch 7 Black Edition
Version
SW713-51GN-512P
Alias
SW713-51GN-512P
Category
Laptops
Released Date
2019-10-04
Operating System
Windows 10 Home
OS Version
64-bit
CPU
i5-8250U
Graphics Processor
Intel UHD Graphics 620
RAM
LPDDR3-SDRAM
RAM Capacity
8 GB
Screen
13.5 inch
Resolution
2256 x 1504 pixels
Storage
256 GB
Battery
37 Wh
Weight
1.6 kg

Acer Switch 7 Black Edition Technical Specifications


Product Overview

Alias
SW713-51GN-512P
Part number
NT.LEVAA.001
Brand
Acer
Family
Switch
Series
7 Black Edition
Version
SW713-51GN-512P
Model
Acer Switch 7 Black Edition SW713-51GN-512P
Category
Laptops

Design

BODY

Type
Hybrid (2-in-1)
Style
Convertible (Detachable)
Colors
Grey
Width (longer side)
329.4 mm
Weight
1.6 kg
Height (shorter side)
229.7 mm
Thickness
15.2 mm

KEYBOARD

Additional features
Windows Key

TOUCHPAD

Pointing device
Touchpad

Camera

BACK CAMERA

Resolution
5 MP
Additional features
  • Back Camera
  • Auto Focus

FRONT CAMERA

Resolution (h x w)
1280 x 720 pixels
Additional features
Camera Module

Display

Type
IPS
Definition
Quad HD
Diagonal
13.5 inch
Resolution (h x w)
2256 x 1504 pixels
Aspect ratio
3:2
Touch technology
Multi-touch
Additional features
  • LED Backlight
  • Touchscreen

Internal Components

CPU

Number of cores
4
Clock speed
1.6 GHz
Max turbo speed
3.4 GHz
Brand
Intel
Model
i5-8250U
Code name
Kaby Lake R
Family
8th gen Intel Core i5
Thermal design power
15 W
Lithography
14 nm
Socket
BGA 1356
Number of threads
8
Cache
6 MB
Configurable tdp (thermal design power) up
25 W
Configurable tdp (thermal design power) up frequency
1.8 GHz

RAM

Capacity
8 GB
Type
LPDDR3-SDRAM

GPU

Dedicated card memory
2 GB
Dedicated card memory type
GDDR5
Dedicated card model
NVIDIA GeForce MX150
Integrated card model
Intel UHD Graphics 620
Integrated card family
Intel UHD Graphics
Integrated card clock speed
300 MHz
Integrated card maximum clock speed
1100 MHz
Integrated card maximum dedicated memory
32 GB
Integrated card directx version
12.0
Integrated card opengl version
4.4
Additional features
  • Dedicated Graphics Adapter
  • Integrated Graphics Adapter

STORAGE

Total capacity
256 GB

SSD

Capacity
256 GB
Total ssd capacity
256 GB
Number of ssds
1
Storage type
SSD
Ssd interface
Serial ATA III

BATTERY

Capacity (watt-hours)
37 Wh
Capacity (mah)
4810 mAh
Life
10 h
Number of cells
2
Type
Lithium-Ion (Li-Ion)

POWER

Power
65 W

WIRELESS

Wifi standards
  • 802.11a
  • 802.11b
  • 802.11g
  • Wi-Fi 4 (802.11n)
  • Wi-Fi 5 (802.11ac)
Wifi adapter
Intel Dual Band Wireless-AC 7265
Bluetooth version
4.0
Type of antenna
2x2
Additional features
  • Bluetooth Module
  • WiFi Module

AUDIO

Number of speakers
2
Number of microphones
4
Number of headphone output ports
1
Additional features
  • Headphone Microphone Combo Jack
  • Microphone

SECURITY

Password protection
Present

SOFTWARE

Operating system version
Windows 10 Home
Operating system bit version
64-bit
Type of password protection
  • BIOS
  • HDD
  • Supervisor
  • User

PORTS

Number of usb 3,2 gen 1 type a ports
1
Number of usb 3,2 gen 2 type c ports
1
Expansion
  • MicroSD (TransFlash)
  • MicroSDXC
Additional features
Card Reader

SENSORS

Sensors
  • Fingerprint Reader
  • Electronic Compass
  • Ambient Light Sensor
  • Accelerometer
  • Gyroscope

Not available

Dual Screen
Dual Screen
Ethernet Card
Ethernet
Numeric Keypad
Numeric Keypad
NX.VCKEK.004
1920x1080
Intel Core i7 6500U
157 ppi
4 GB
NX.MPGEG.003
1366x768
Intel Core i5 4210U
118 ppi
4 GB
NX.GDWEV.027
1366x768
Intel Core i5 7200U
100 ppi
8 GB
NX.VCKEK.020
1366x768
Intel Core i5 6200U
112 ppi
4 GB
LX.TQ90Z.539
1280x800
AMD Turion X2 RM-75
98 ppi
2 GB
NX.M6VEH.003
1366x768
Intel Core i5 3337U
100 ppi
8 GB
NX.V87EH.016, NX.V87EH.018
1600x900
Intel Core i3 3110M
106 ppi
4 GB
