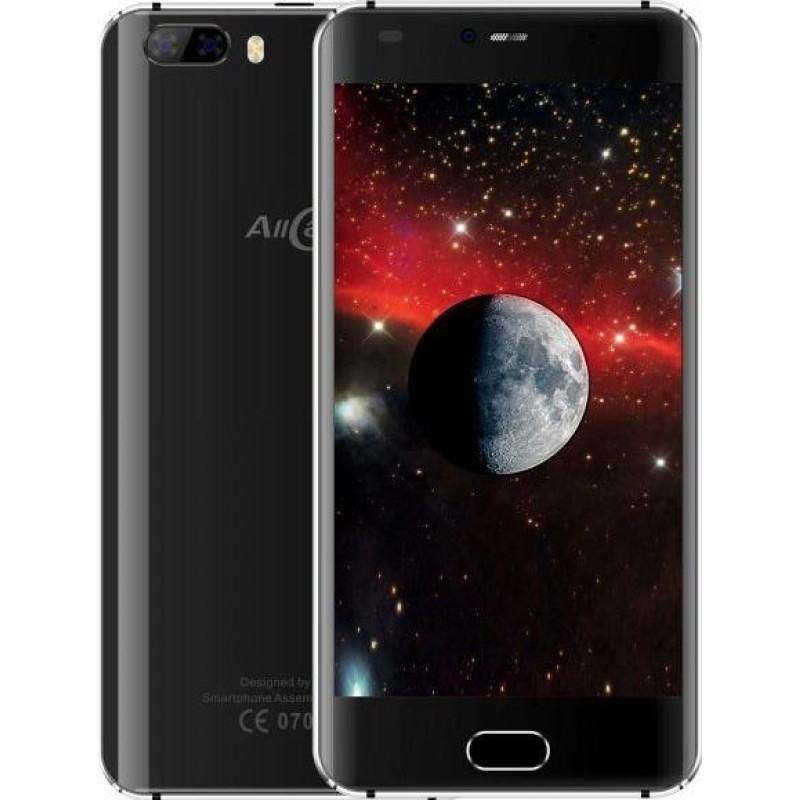

AllCall Rio

AllCall Rio

Operating System
Operating System
Google Android
Screen
Screen
127 mm, 5 inch
CPU
CPU
MediaTek MT6580
RAM
RAM
mobile (LP) DDR3 SDRAM
Storage
Storage
16 GB
Main Camera
Main Camera
8.1 MP
Battery
Battery
2700 mAh

AllCall Rio Prices

Amazon

$32.00

Includes delivery

1-3 Day(s)

★★★★☆ 4.7/5
Go to Store
eBay

$-21.00

Includes delivery

3-7 Day(s)

★★★★☆ 4.5/5
Go to Store

AllCall Rio Key Specifications

Brand
AllCall
Model
AllCall Rio
Category
Smartphones
Price
55 USD
Released Date
2017-07-01
Announcement Date
2017 Jun 20
Operating System
Google Android
OS Version
Google Android 7.0 (Nougat)
CPU
MediaTek MT6580
Graphics Processor
ARM Mali-400MP2
RAM
mobile (LP) DDR3 SDRAM
RAM Capacity
1 GB
Main Camera
8.1 MP
Screen
127 mm, 5 inch
Pixel Density
294 PPI
Resolution
720x1280
Storage
16 GB
Battery
2700 mAh
Weight
193 g, 6.81 ounces

AllCall Rio Technical Specifications

Product Overview

Brand
AllCall
Manufacturer
  • Shenzhen AllCall Technology Co.
  • Ltd
Model
AllCall Rio
Category
Smartphones
Region
  • Asia
  • Europe
  • Southeast Asia
Country
  • China
  • HK
  • Russia
  • Romania
  • Spain

Design

BODY

Height
  • 145.3 mm
  • 5.72 inch
Width
  • 71.2 mm
  • 2.8 inch
Weight
  • 193 g
  • 6.81 ounces
Thickness
  • 0.38 inches
  • 9.6 mm
Colors
Black Gold

Camera

BACK CAMERA

Focus
Contrast Detection Autofocus (CD AF)
Resolution
8.1 MP
Resolution (h x w)
3280x2464 pixel
Video format
  • 3GP
  • 3G2
  • MPEG4
Image format
  • JPG
  • 30 fps
Pixel size
1.40 micrometer
Zoom
1.0 x optical zoom
Flash
single LED
Aperture (w)
f/2.20
Features
  • HDR photo
  • Touch focus
  • Macro mode
  • Panorama Photo
  • Face detection
  • Face retouch
Sensor
CMOS
Sensor format
1/3.20
Module
Sony IMX149

BACK CAMERA II

Resolution
1.9 MP
Aperture (w)
f/2.20

FRONT CAMERA

Resolution
1.9 MP
Resolution (h x w)
1600x1200 pixel
Video format
3GP
Image format
  • JPG
  • 30 fps
Features
  • Face detection
  • Face retouch
Sensor
CMOS

Display

Diagonal
  • 127 mm
  • 5 inch
Resolution (h x w)
720x1280
Pixel density
294 PPI
Width
  • 62.26 mm
  • 2.45 inch
Height
  • 110.69 mm
  • 4.36 inch
Illumination
LED
Dynamic range
8 bit
Pixel size
0.08648 mm/pixel
Color depth
24 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
16.8M
Screen to body ratio
66.6%
Bezel width
  • 8.94 mm
  • 0.35 inch(es)
Touchpoints
Multi touch
Touch screen type
Capacitive

Internal Components

SOFTWARE

Os
Google Android
Os version
Google Android 7.0 (Nougat)

PROCESSOR

Cpu
MediaTek MT6580
Cpu clock speed
1300 MHz
Gpu
ARM Mali-400MP2
Gpu clock speed
500 MHz

RAM

Type
mobile (LP) DDR3 SDRAM
Capacity
1 GB

STORAGE

Type
Flash EEPROM
Capacity
16 GB
Expansion
  • TransFlash
  • MicroSD
  • MicroSDHC

AUDIO

Channel
stereo
Output
3.5mm
Microphone
mono

CELLULAR

Sim slot
Nano-SIM (4FF)
Sim frequencies
  • GSM 850MHz (B5)
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
  • UMTS 2100MHz (Band I, IMT)
  • UMTS 900MHz (Band VIII) bands
Sim mobile data
  • GPRS (Class unspecified)
  • EDGE (Class unspecified)
  • UMTS 384 kbps (W-CDMA)
  • HSUPA (Cat. unspecified)
  • HSDPA (Cat. unspecified)
  • HSPA+ 21.1 Mbps (Cat. 18) data links
Sim ii slot
Nano-SIM (4FF)
Sim ii frequencies
  • GSM 850MHz (B5)
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
Sim ii mobile data
  • GPRS (Class unspecified)
  • EDGE (Class unspecified)
Sim ii module
MediaTek MT6580A
Dual sim type
Dual standby
Generation
3G
Sim type
Dual

WIRELESS

Bluetooth version
4.0
Bluetooth profiles
  • A2DP
  • AVRCP
Wifi
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wifi features
Wi-Fi Tethering
Experiences
FM Radio

PORTS

Usb type
  • Type B
  • Micro USB
Usb version
  • 2.0
  • Hi-Speed (480 Mbps)
Usb features
  • charging
  • Host
  • On-The-Go 1.0
  • On-The-Go 1.3
  • Power Delivery

BATTERY

Type
Lithium-ion polymer (LiPo) — 1 cell
Cell i
2700 mAh
Capacity
2700 mAh
Style
Non-removable
Talk time
16.0 hours
Standby time
72 hours
Standby current consumption
38 mA

LOCATION

Chip
MediaTek MT6580A
Additional features
GPS

SENSORS

Sensors
  • Light intensity sensor
  • Proximity sensor
  • Accelerometer
  • Compass

Not available
