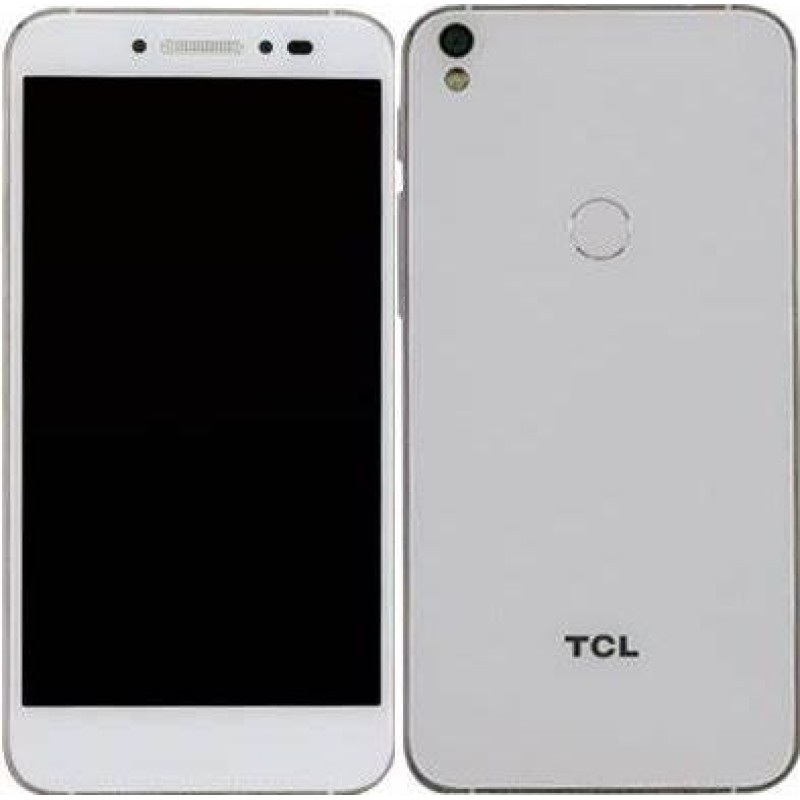

TCL 520

Operating System
Operating System
Google Android
Screen
Screen
127 mm, 5 inch
CPU
CPU
MediaTek MT6737
RAM
RAM
mobile (LP) DDR3 SDRAM
Storage
Storage
32 GB
Main Camera
Main Camera
13.0 MP
Battery
Battery
2460 mAh

TCL 520 Prices


TCL 520 Key Specifications


Brand
TCL
Model
TCL 520
Version
520
Category
Smartphones
Price
163 USD
Released Date
2016-10-01
Operating System
Google Android
OS Version
Google Android 6.0.1 (Marshmallow)
CPU
MediaTek MT6737
Graphics Processor
ARM Mali-T720MP2
RAM
mobile (LP) DDR3 SDRAM
RAM Capacity
4 GB
Main Camera
13.0 MP
Screen
127 mm, 5 inch
Pixel Density
294 PPI
Resolution
720x1280
Storage
32 GB
Battery
2460 mAh
Weight
156 g, 5.5 ounces

TCL 520 Technical Specifications


Product Overview

Brand
TCL
Manufacturer
TCL
Model
TCL 520
Version
520
Category
Smartphones
Country
China

Design

BODY

Height
  • 141.5 mm
  • 5.57 inch
Width
  • 72.1 mm
  • 2.84 inch
Weight
  • 156 g
  • 5.5 ounces
Thickness
  • 0.29 inches
  • 7.45 mm
Colors
White

Camera

BACK CAMERA

Focus
Contrast Detection Autofocus (CD AF)
Resolution
13.0 MP
Resolution (h x w)
4160x3120 pixel
Video format
  • 3GP
  • 3G2
  • MPEG4
Video resolution
  • 1920x1080 pixel
  • 30 fps
Image format
JPG
Zoom
1.0 x optical zoom
Flash
single LED
Features
  • HDR photo
  • Macro mode
  • Panorama Photo
Sensor
CMOS

FRONT CAMERA

Resolution
5.0 MP
Resolution (h x w)
2592x1944 pixel
Video resolution
  • 1280x720 pixel
  • 30 fps
Video format
3GP
Image format
JPG
Sensor
CMOS

Display

Diagonal
  • 127 mm
  • 5 inch
Resolution (h x w)
720x1280
Pixel density
294 PPI
Width
  • 62.26 mm
  • 2.45 inch
Height
  • 110.69 mm
  • 4.36 inch
Dynamic range
8 bit
Pixel size
0.08648 mm/pixel
Color depth
24 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
16.8M
Screen to body ratio
67.6%
Bezel width
  • 9.84 mm
  • 0.39 inch(es)
Touchpoints
Multi touch
Touch screen type
Capacitive

Internal Components

SOFTWARE

Os
Google Android
Os version
Google Android 6.0.1 (Marshmallow)

PROCESSOR

Cpu
MediaTek MT6737
Cpu clock speed
1300 MHz
Gpu
ARM Mali-T720MP2

RAM

Type
mobile (LP) DDR3 SDRAM
Capacity
4 GB

STORAGE

Type
Flash EEPROM
Capacity
32 GB
Expansion
  • TransFlash
  • MicroSD
  • MicroSDHC
  • MicroSD Extended Capacity

AUDIO

Channel
stereo
Output
3.5mm

CELLULAR

Sim slot
Nano-SIM (4FF)
Sim frequencies
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
  • UMTS 2100MHz (Band I, IMT)
  • UMTS 850MHz (Band V, CLR)
  • CDMA 800MHz (BC0, 850)
  • CDMA 1900MHz (BC1/BC14, PCS)
  • TD-SCDMA 2000 MHz (B34)
  • TD-SCDMA 1900 MHz (B39)
  • LTE 2100 MHz (Band 1)
  • LTE 1800 MHz (Band 3)
  • TD-LTE 2600 MHz (Band 38)
  • TD-LTE 1900 MHz (Band 39)
  • TD-LTE 2300 MHz (Band XL)
  • TD-LTE 2500 MHz (Band XLI) bands
Sim mobile data
  • GPRS (Class unspecified)
  • EDGE (Class unspecified)
  • UMTS 384 kbps (W-CDMA)
  • HSUPA (Cat. unspecified)
  • HSDPA (Cat. unspecified)
  • HSPA+ 21.1 Mbps (Cat. 18)
  • cdmaOne (IS-95)
  • CDMA2000 1xRTT (IS-2000)
  • CDMA2000 1xEV-DO Rel. 0
  • CDMA2000 1xEV-DO Revision A
  • TD-SCDMA
  • TD-HSDPA
  • LTE (Cat. unspecified)
  • LTE 150 Mbps
  • 50 Mbps (Cat. 4) data links
Sim ii frequencies
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
Sim ii mobile data
  • GPRS (Class unspecified)
  • EDGE (Class unspecified)
Sim ii module
MediaTek MT6737
Dual sim type
Dual standby
Carrier
China Telecom Corporation Limited
Generation
4G
Sim type
Dual

WIRELESS

Bluetooth version
4.0
Bluetooth profiles
  • A2DP
  • AVRCP
Wifi
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wifi features
Wi-Fi Tethering
Experiences
FM Radio

PORTS

Usb type
  • Type B
  • Micro USB
Usb version
  • 2.0
  • Hi-Speed (480 Mbps)
Usb features
charging

BATTERY

Type
Lithium-ion — 1 cell
Cell i
2460 mAh
Capacity
2460 mAh

LOCATION

Chip
MediaTek MT6737
Additional features
GPS

SENSORS

Sensors
  • Fingerprint sensor
  • Light intensity sensor
  • Proximity sensor
  • Accelerometer
  • Compass
