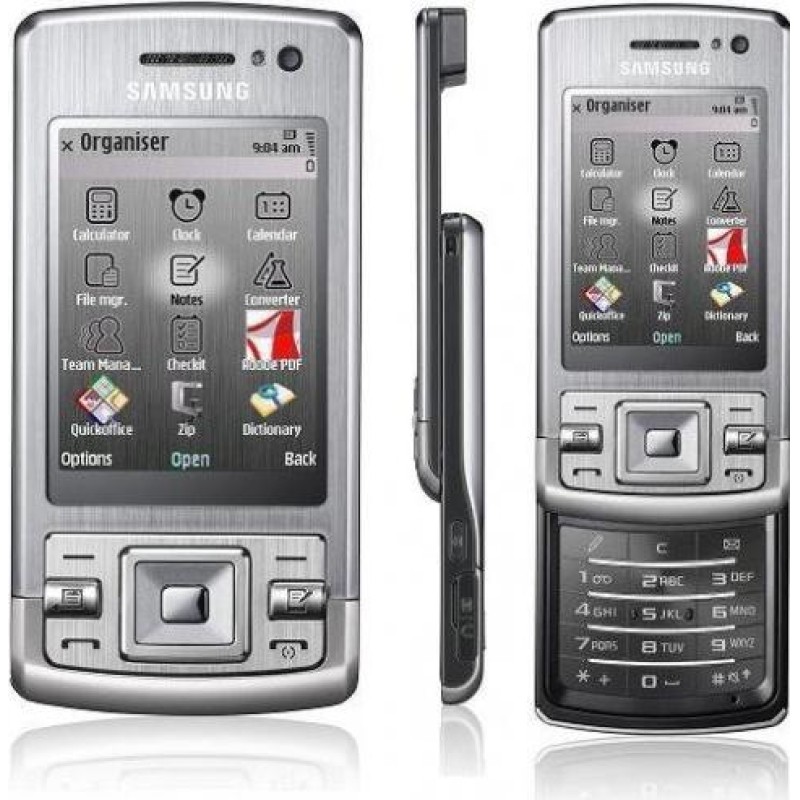

Samsung SGH-L870

Operating System
Operating System
Symbian
Screen
Screen
60 mm, 2.4 inch
CPU
CPU
STMicroelectronics Nomadik STn8815P14
RAM
RAM
SDRAM
Storage
Storage
256 MB
Main Camera
Main Camera
3.1 MP
Battery
Battery
1000 mAh

Samsung SGH-L870 Prices


Samsung SGH-L870 Key Specifications


Brand
Samsung
Model
Samsung SGH-L870
Version
SGH-L870
Category
Smartphones
Price
139 USD
Released Date
2008-08-01
Operating System
Symbian
OS Version
Symbian OS 9.3 Series 60 3rd Edition, Feature Pack 2
CPU
STMicroelectronics Nomadik STn8815P14
Graphics Processor
N/A
RAM
SDRAM
RAM Capacity
128 MB
Main Camera
3.1 MP
Screen
60 mm, 2.4 inch
Pixel Density
169 PPI
Resolution
240x320
Storage
256 MB
Battery
1000 mAh
Weight
120 g, 4.23 ounces

Samsung SGH-L870 Technical Specifications


Product Overview

Brand
Samsung
Manufacturer
Samsung Electronics
Model
Samsung SGH-L870
Version
SGH-L870
Category
Smartphones

Design

BODY

Height
  • 103.5 mm
  • 4.07 inch
Width
  • 50.5 mm
  • 1.99 inch
Weight
  • 120 g
  • 4.23 ounces
Thickness
  • 0.53 inches
  • 13.5 mm
Colors
Modern Black

KEYBOARD

Keys
15
Backlight
LED

PERIPHERAL

Peripheral
D Pad

Camera

BACK CAMERA

Focus
Contrast Detection Autofocus (CD AF)
Resolution
3.1 MP
Resolution (h x w)
2048x1536 pixel
Video format
  • 3GP
  • MPEG4
Video resolution
  • 352x288 pixel
  • 15 fps
Image format
JPG
Zoom
1.0 x optical zoom
Sensor
CMOS

FRONT CAMERA

Resolution
0.3 MP
Resolution (h x w)
640x480 pixel
Image format
JPG
Sensor
CMOS

Display

Diagonal
  • 60 mm
  • 2.4 inch
Resolution (h x w)
240x320
Pixel density
169 PPI
Width
  • 36 mm
  • 1.42 inch
Height
  • 48 mm
  • 1.89 inch
Pixel size
0.15 mm/pixel
Color depth
18 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
262144
Screen to body ratio
33.1%
Bezel width
  • 14.5 mm
  • 0.57 inch(es)
Lcd mode
transflective
Touchpoints
1
Touch screen type
Resistive

Internal Components

SOFTWARE

Os
Symbian
Kernel version
9.3
Os version
  • Symbian OS 9.3 Series 60 3rd Edition
  • Feature Pack 2

PROCESSOR

Cpu
STMicroelectronics Nomadik STn8815P14
Cpu clock speed
264 MHz
Gpu
N/A

RAM

Type
SDRAM
Capacity
128 MB

STORAGE

Type
Flash EEPROM
Capacity
256 MB
Expansion
  • TransFlash
  • MicroSD
  • MicroSDHC

AUDIO

Dac frequency
44100 Hz
Dac resolution
16 bit
Channel
stereo
Output
Proprietary
Microphone
mono

CELLULAR

Sim slot
Mini-SIM (2FF)
Sim frequencies
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
  • UMTS 2100MHz (Band I, IMT) bands
Sim mobile data
  • CSD 9.6 kbps
  • GPRS (Class unspecified)
  • GPRS Class 10
  • EDGE (Class unspecified)
  • UMTS 384 kbps (W-CDMA)
  • HSDPA (Cat. unspecified)
  • HSDPA 3.6 Mbps (Cat. 6) data links
Generation
3G
Sim type
Single

WIRELESS

Bluetooth version
2.0 + Enhanced Data Rate
Bluetooth profiles
A2DP
Experiences
FM Radio

PORTS

Usb type
  • Type B
  • Micro USB
Usb version
  • 2.0
  • Full-Speed (12 Mbps)
Usb features
charging

BATTERY

Type
Lithium-ion — 1 cell
Cell i
1000 mAh
Capacity
1000 mAh
Style
Removable

LOCATION

Additional features
GPS

SENSORS

Sensors
Accelerometer

Not available

WiFi
Wireless LAN
GPS
GPS
Flash
Camera Flash
AV Out
AV Out
SIM II Frequencies
Dual SIM
Accelerometer
Accelerometer
