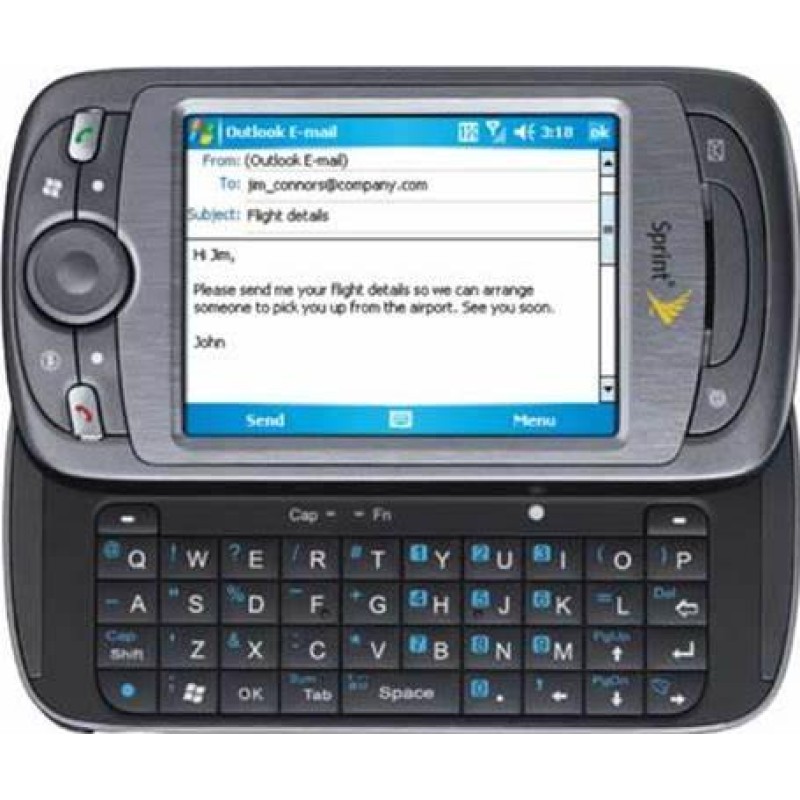

Sprint Mogul

Operating System
Operating System
Windows Mobile
Screen
Screen
70 mm, 2.8 inch
CPU
CPU
Qualcomm MSM7500
RAM
RAM
SDRAM
Storage
Storage
256 MB
Main Camera
Main Camera
1.9 MP
Battery
Battery
1500 mAh

Sprint Mogul Prices


Sprint Mogul Key Specifications


Brand
Sprint
Model
Sprint Mogul
Version
PPC-6800
Alias
HTC Titan 100
Category
Smartphones
Price
399.99 USD
Released Date
2007-06-21
Operating System
Windows Mobile
OS Version
Microsoft Windows Mobile 6 Professional (Crossbow)
CPU
Qualcomm MSM7500
Graphics Processor
N/A
RAM
SDRAM
RAM Capacity
64 MB
Main Camera
1.9 MP
Screen
70 mm, 2.8 inch
Pixel Density
145 PPI
Resolution
240x320
Storage
256 MB
Battery
1500 mAh
Weight
165 g, 5.82 ounces

Sprint Mogul Technical Specifications


Product Overview

Brand
Sprint
Manufacturer
HTC
Model
Sprint Mogul
Version
PPC-6800
Category
Smartphones
Country
USA
Alias
HTC Titan 100

Design

BODY

Height
  • 110 mm
  • 4.33 inch
Width
  • 59 mm
  • 2.32 inch
Weight
  • 165 g
  • 5.82 ounces
Thickness
  • 0.73 inches
  • 18.5 mm
Colors
Grey/Black

KEYBOARD

Keys
41
Backlight
LED

PERIPHERAL

Peripheral
  • D Pad
  • Pressable rotary scroll wheel

Camera

BACK CAMERA

Resolution
1.9 MP
Resolution (h x w)
1600x1200 pixel
Video format
  • 3GP
  • MPEG4
  • MJPG
Video resolution
176x144 pixel
Image format
  • BMP
  • JPG
Zoom
1.0 x optical zoom
Flash
single LED
Sensor
CMOS

Display

Diagonal
  • 70 mm
  • 2.8 inch
Resolution (h x w)
240x320
Pixel density
145 PPI
Width
  • 42 mm
  • 1.65 inch
Height
  • 56 mm
  • 2.2 inch
Pixel size
0.175 mm/pixel
Color depth
16 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
65536
Screen to body ratio
36.2%
Bezel width
  • 17 mm
  • 0.67 inch(es)
Lcd mode
transflective
Touchpoints
1
Touch screen type
Resistive

Internal Components

SOFTWARE

Os
Windows Mobile
Kernel version
5.2
Os version
Microsoft Windows Mobile 6 Professional (Crossbow)

PROCESSOR

Cpu
Qualcomm MSM7500
Cpu clock speed
400 MHz
Gpu
N/A

RAM

Type
SDRAM
Capacity
64 MB

STORAGE

Type
Flash EEPROM
Capacity
256 MB
Expansion
  • SDIO
  • TransFlash
  • MicroSD
  • MicroSDHC

AUDIO

Adc resolution
16 bit
Adc frequency
44100 Hz
Dac frequency
44100 Hz
Dac resolution
16 bit
Channel
stereo
Output
Proprietary
Microphone
mono

CELLULAR

Sim frequencies
  • CDMA 800MHz (BC0, 850)
  • CDMA 1900MHz (BC1/BC14, PCS) bands
Sim mobile data
  • cdmaOne (IS-95)
  • CDMA2000 1xRTT (IS-2000)
  • CDMA2000 1xEV-DO Rel. 0
  • CDMA2000 1xEV-DO Revision A data links
Carrier
Sprint Nextel Corporation
Generation
3G
Sim type
Single

WIRELESS

Bluetooth version
2.0
Wifi
  • IEEE 802.11b
  • IEEE 802.11g
Experiences
  • FM Radio
  • Infrared

PORTS

Usb type
  • Type B
  • Mini USB
Usb version
  • 1.1
  • Full-Speed (12 Mbps)
Usb features
charging

BATTERY

Type
Lithium-ion polymer (LiPo) — 1 cell
Cell i
1500 mAh
Capacity
1500 mAh
Style
Removable
Current
115 mA
Life
13.0 hours

LOCATION

Chip
Qualcomm MSM7500 gpsOne
Additional features
GPS

SENSORS

Sensors
Accelerometer

Not available

Focus
Sensor
Front Camera
AV Out
AV Out
SIM II Frequencies
Dual SIM
FM Radio
FM Radio
Accelerometer
Accelerometer
1440x2560
4 GB
565 PPI
3000 mAh
A9292
480x800
512 MB
217 PPI
1500 mAh
480x800
512 MB
260 PPI
1500 mAh
STA100-4
720x1280
2 GB
294 PPI
2880 mAh
480x640
256 MB
290 PPI
1340 mAh
480x800
512 MB
259 PPI
1500 mAh
1080x1920
2 GB
441 PPI
2600 mAh
