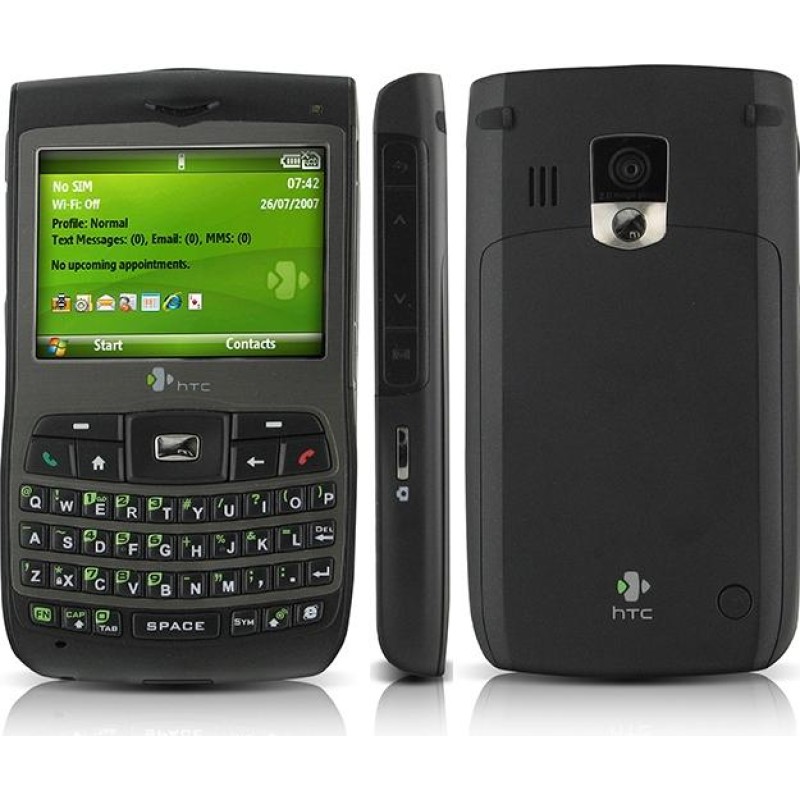

HTC S630

Operating System
Operating System
Windows Mobile
Screen
Screen
61 mm, 2.4 inch
CPU
CPU
Samsung SC32442
RAM
RAM
SDRAM
Storage
Storage
128 MB
Main Camera
Main Camera
1.9 MP
Battery
Battery
1050 mAh

HTC S630 Prices


HTC S630 Key Specifications


Brand
HTC
Model
HTC S630
Version
Cavalier
Alias
HTC Cavalier 100
Category
Smartphones
Price
345 USD
Released Date
2007-07-01
Operating System
Windows Mobile
OS Version
Microsoft Windows Mobile 6 Standard (Crossbow)
CPU
Samsung SC32442
Graphics Processor
N/A
RAM
SDRAM
RAM Capacity
64 MB
Main Camera
1.9 MP
Screen
61 mm, 2.4 inch
Pixel Density
167 PPI
Resolution
320x240
Storage
128 MB
Battery
1050 mAh
Weight
120 g, 4.23 ounces

HTC S630 Technical Specifications


Product Overview

Brand
HTC
Manufacturer
HTC
Model
HTC S630
Version
Cavalier
Category
Smartphones
Alias
HTC Cavalier 100

Design

BODY

Height
  • 112.5 mm
  • 4.43 inch
Width
  • 62.5 mm
  • 2.46 inch
Weight
  • 120 g
  • 4.23 ounces
Thickness
  • 0.54 inches
  • 13.7 mm
Colors
Black

KEYBOARD

Keys
43
Backlight
LED

PERIPHERAL

Peripheral
  • D Pad
  • Pressable rotary scroll wheel

Camera

BACK CAMERA

Resolution
1.9 MP
Resolution (h x w)
1600x1200 pixel
Video format
  • 3GP
  • MPEG4
  • MJPG
Video resolution
176x144 pixel
Image format
  • BMP
  • JPG
Zoom
1.0 x optical zoom
Sensor
CMOS

Display

Diagonal
  • 61 mm
  • 2.4 inch
Resolution (h x w)
320x240
Pixel density
167 PPI
Width
  • 48.8 mm
  • 1.92 inch
Height
  • 36.6 mm
  • 1.44 inch
Pixel size
0.1525 mm/pixel
Color depth
16 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
65536
Screen to body ratio
25.4%
Bezel width
  • 13.7 mm
  • 0.54 inch(es)
Lcd mode
transflective

Internal Components

SOFTWARE

Os
Windows Mobile
Kernel version
5.2.1238
Os version
Microsoft Windows Mobile 6 Standard (Crossbow)

PROCESSOR

Cpu
Samsung SC32442
Cpu clock speed
400 MHz
Gpu
N/A

RAM

Type
SDRAM
Capacity
64 MB

STORAGE

Type
Flash EEPROM
Capacity
128 MB
Expansion
  • SDIO
  • TransFlash
  • MicroSD
  • MicroSDHC

AUDIO

Adc resolution
16 bit
Adc frequency
44100 Hz
Dac frequency
44100 Hz
Dac resolution
16 bit
Channel
stereo
Output
Proprietary
Microphone
mono

CELLULAR

Sim slot
Mini-SIM (2FF)
Sim frequencies
  • GSM 850MHz (B5)
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2)
  • UMTS 2100MHz (Band I, IMT)
  • UMTS 1900MHz (Band II, PCS)
  • UMTS 850MHz (Band V, CLR) bands
Sim mobile data
  • CSD 9.6 kbps
  • GPRS (Class unspecified)
  • GPRS Class 10
  • EDGE (Class unspecified)
  • UMTS 384 kbps (W-CDMA)
  • HSDPA (Cat. unspecified) data links
Generation
3G
Sim type
Single

WIRELESS

Bluetooth version
2.0
Bluetooth profiles
A2DP
Wifi
  • IEEE 802.11b
  • IEEE 802.11g
Experiences
FM Radio

PORTS

Usb type
  • Type B
  • Mini USB
Usb version
  • 1.1
  • Full-Speed (12 Mbps)
Usb features
charging

BATTERY

Type
Lithium-ion — 1 cell
Cell i
1050 mAh
Capacity
1050 mAh
Style
Removable
Current
95 mA
Life
11.0 hours

LOCATION

Additional features
GPS

SENSORS

Sensors
Accelerometer

Not available

GPS
GPS
Focus
Flash
Camera Flash
Sensor
Front Camera
AV Out
AV Out
SIM II Frequencies
Dual SIM
FM Radio
FM Radio
Accelerometer
Accelerometer
540 x 960 pixels
LPDDR3
234 ppi
2000 mAh
480 x 800 pixels
LPDDR
252 ppi
1400 mAh
A8182
480x800
512 MB
252 PPI
1400 mAh
T329d
480x800
512 MB
232 PPI
1800 mAh
A9w
1080x1920
2 GB
441 PPI
2150 mAh
540x960
512 MB
274 PPI
1520 mAh
480x800
512 MB
199 PPI
1730 mAh
