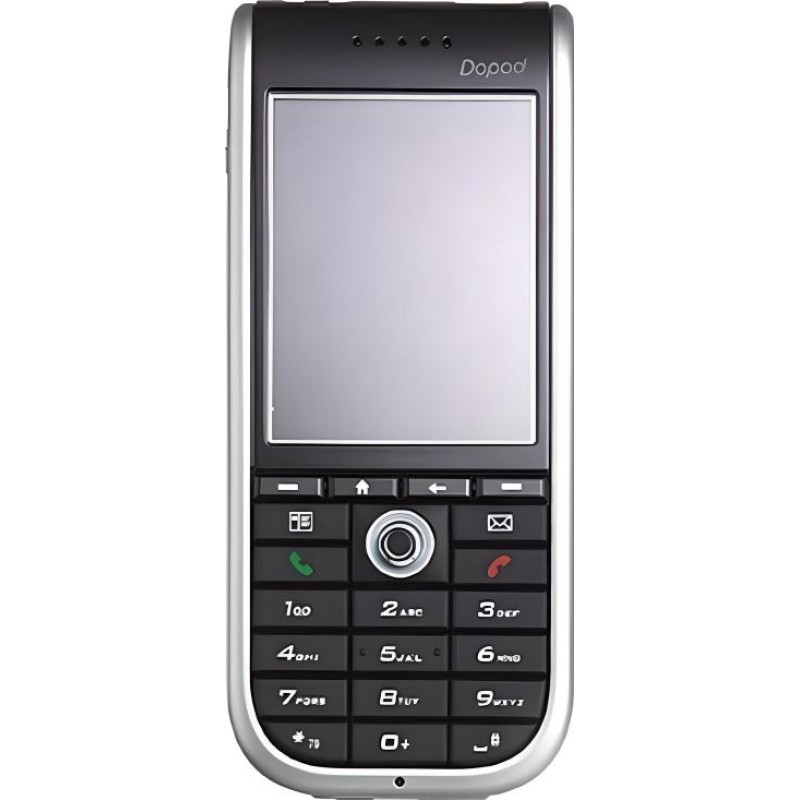

Dopod 577W

Operating System
Operating System
Windows Mobile
Screen
Screen
57 mm, 2.2 inch
CPU
CPU
Texas Instruments OMAP 850
RAM
RAM
SDRAM
Storage
Storage
64 MB
Main Camera
Main Camera
1.3 MP
Battery
Battery
1050 mAh

Dopod 577W Prices


Dopod 577W Key Specifications


Brand
Dopod
Model
Dopod 577W
Alias
HTC Tornado Noble
Category
Smartphones
Released Date
2005-11-01
Operating System
Windows Mobile
OS Version
Microsoft Windows Mobile 5.0 for Smartphone
CPU
Texas Instruments OMAP 850
Graphics Processor
N/A
RAM
SDRAM
RAM Capacity
64 MB
Main Camera
1.3 MP
Screen
57 mm, 2.2 inch
Pixel Density
178 PPI
Resolution
240x320
Storage
64 MB
Battery
1050 mAh
Weight
106 g, 3.74 ounces

Dopod 577W Technical Specifications


Product Overview

Brand
Dopod
Manufacturer
HTC
Model
Dopod 577W
Category
Smartphones
Alias
HTC Tornado Noble

Design

BODY

Height
  • 107.5 mm
  • 4.23 inch
Width
  • 46.2 mm
  • 1.82 inch
Weight
  • 106 g
  • 3.74 ounces
Thickness
  • 0.69 inches
  • 17.5 mm
Colors
Black

KEYBOARD

Keys
12
Backlight
LED

PERIPHERAL

Peripheral
D Pad

Camera

BACK CAMERA

Resolution
1.3 MP
Resolution (h x w)
1280x1024 pixel
Video format
  • 3GP
  • MPEG4
  • MJPG
Video resolution
  • 176x144 pixel
  • 10 fps
Image format
  • BMP
  • JPG
Zoom
1.0 x optical zoom
Sensor
CMOS

Display

Diagonal
  • 57 mm
  • 2.2 inch
Resolution (h x w)
240x320
Pixel density
178 PPI
Width
  • 34.2 mm
  • 1.35 inch
Height
  • 45.6 mm
  • 1.8 inch
Pixel size
0.1425 mm/pixel
Color depth
16 bit
Subpixels
RGB Matrix (3 subpixels)
Number of colors
65536
Screen to body ratio
31.4%
Bezel width
  • 12 mm
  • 0.47 inch(es)
Lcd mode
transflective

Internal Components

SOFTWARE

Os
Windows Mobile
Kernel version
5.1.17000
Os version
Microsoft Windows Mobile 5.0 for Smartphone

PROCESSOR

Cpu
Texas Instruments OMAP 850
Cpu clock speed
200 MHz
Gpu
N/A

RAM

Type
SDRAM
Capacity
64 MB

STORAGE

Type
Flash EEPROM
Capacity
64 MB
Expansion
  • SDIO
  • MiniSD

AUDIO

Adc resolution
16 bit
Adc frequency
44100 Hz
Dac resolution
16 bit
Channel
stereo
Output
Proprietary
Microphone
mono

CELLULAR

Sim slot
Mini-SIM (2FF)
Sim frequencies
  • GSM 850MHz (B5)
  • GSM 900MHz (B8)
  • GSM 1800MHz (B3)
  • GSM 1900MHz (PCS, B2) bands
Sim mobile data
  • CSD 9.6 kbps
  • GPRS (Class unspecified)
  • GPRS Class 10
  • EDGE (Class unspecified) data links
Generation
3G
Sim type
Single

WIRELESS

Bluetooth version
1.2
Wifi
IEEE 802.11b
Experiences
  • FM Radio
  • Infrared

PORTS

Usb type
  • Type B
  • Mini USB
Usb version
  • 1.1
  • Full-Speed (12 Mbps)

BATTERY

Type
Lithium-ion — 1 cell
Cell i
1050 mAh
Capacity
1050 mAh
Style
Removable
Current
70 mA
Life
15.0 hours

LOCATION

Additional features
GPS

SENSORS

Sensors
Accelerometer

Not available

GPS
GPS
Focus
Flash
Camera Flash
Sensor
Front Camera
AV Out
AV Out
SIM II Frequencies
Dual SIM
FM Radio
FM Radio
Accelerometer
Accelerometer
